Nordic nRF54L15 SoC Module: Advanced system-on-chip module featuring Nordic’s nRF54L15 technology for versatile wireless connectivity applications
Nordic Semiconductor Recommended Module: A recommended third-party module by Nordic Semiconductor ensuring quality and compatibility with Nordic development ecosystem
Extensive GPIO Capability: Features 21 general-purpose input/output pins with embedded chip antenna for comprehensive connectivity and control options
Wide Operating Temperature Range: Operates reliably in extreme conditions from -40 to +85C, suitable for industrial and automotive applications
BB901S incorporates: UART, SPI, I2S, I2C, ADC, NFC, PDM, QDEC, PWM interfaces for connecting peripherals and sensors.
IEEE 802.15.4-2020: Thread, Matter, and Zigbee
Nordic nRF54L15 PCB Antenna Module
IEEE 802.15.4-2020: Thread, Matter, and Zigbee
integrates a 32-bit 128MHz ARM®Cortex®-M33 core and a 128 MHz RISC-V core
configurations up to 1524 KB NVM and up to 256 KB RAM

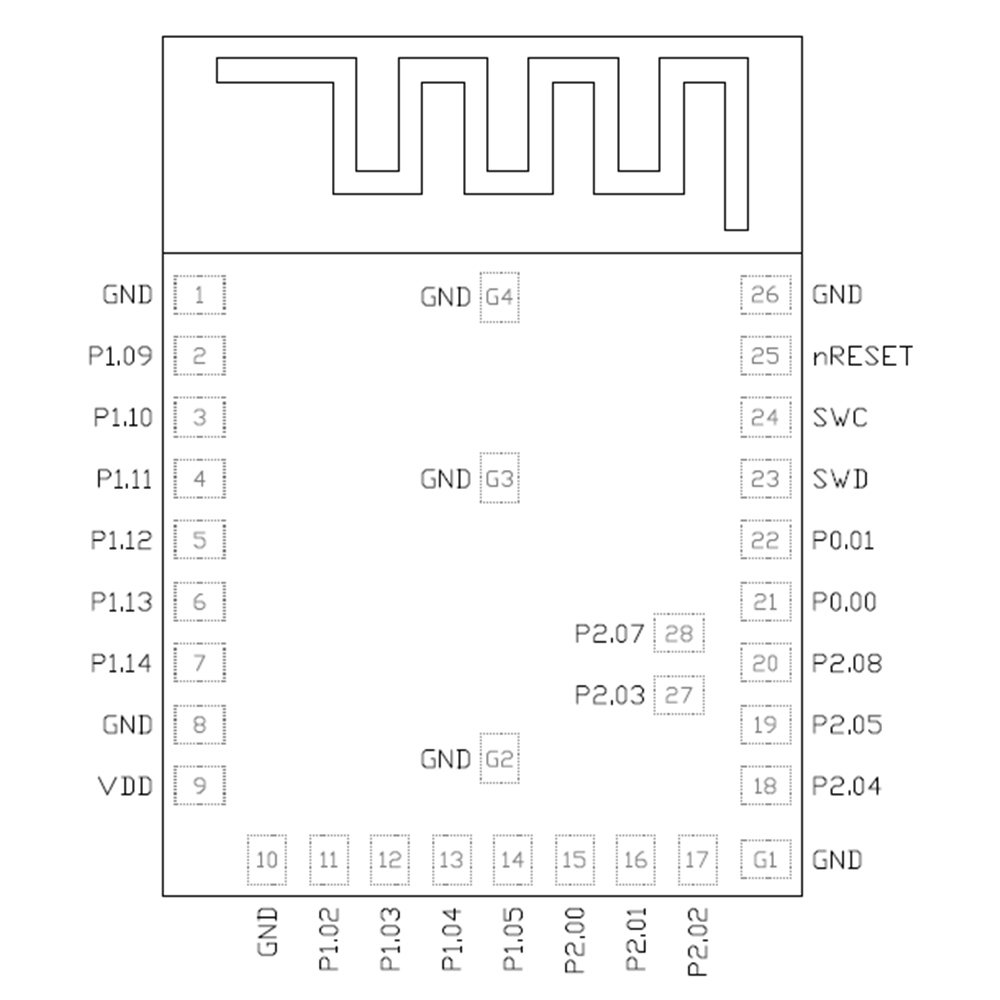

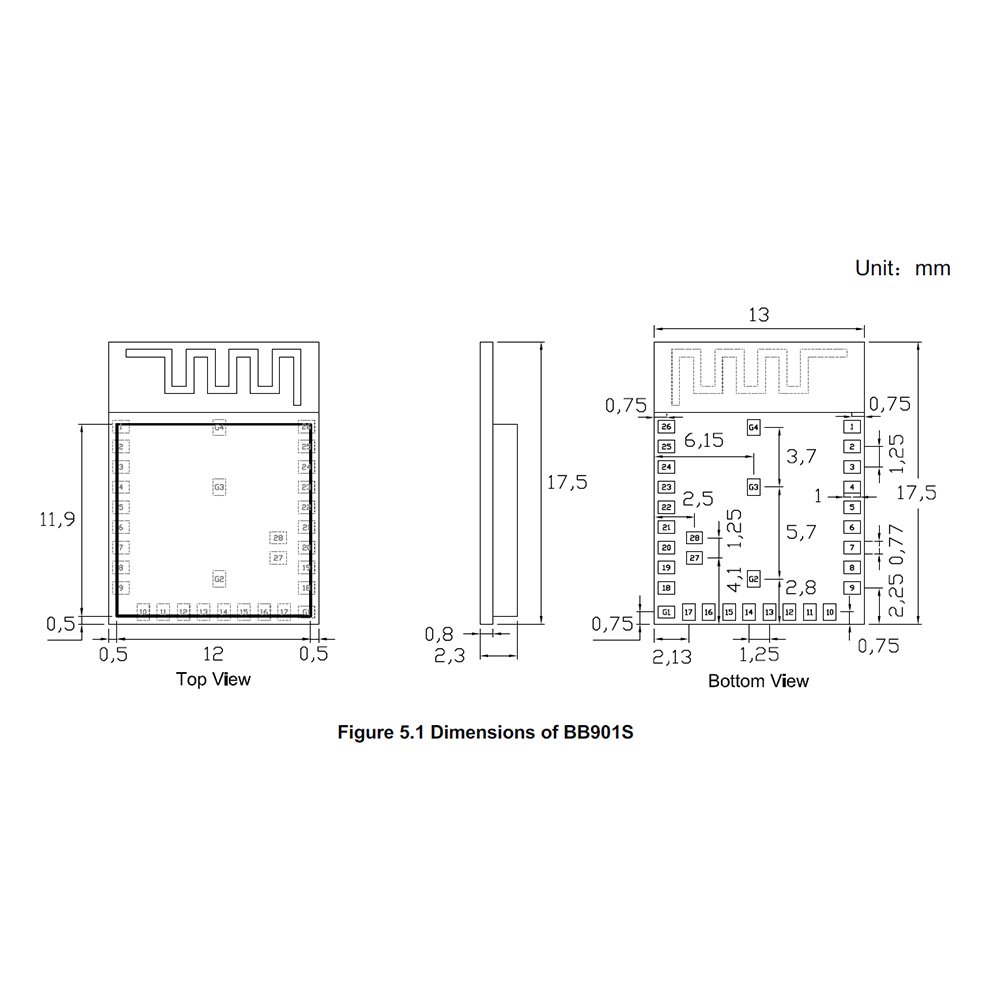

20 GPIO / 13mm×17.5mm×2.3mm
BB901S provides rich interfaces such as UART, SPI, I2S, I2C, ADC, NFC, PDM, QDEC, PWM
Operation Temp.: -40°C to 85 °C (-40°F~221°F)
Supply voltage：1.7 to 3.6 V
RoHS & Reach Compliant
Raytac Part No.: BB901S
BB901S DataSheet：
