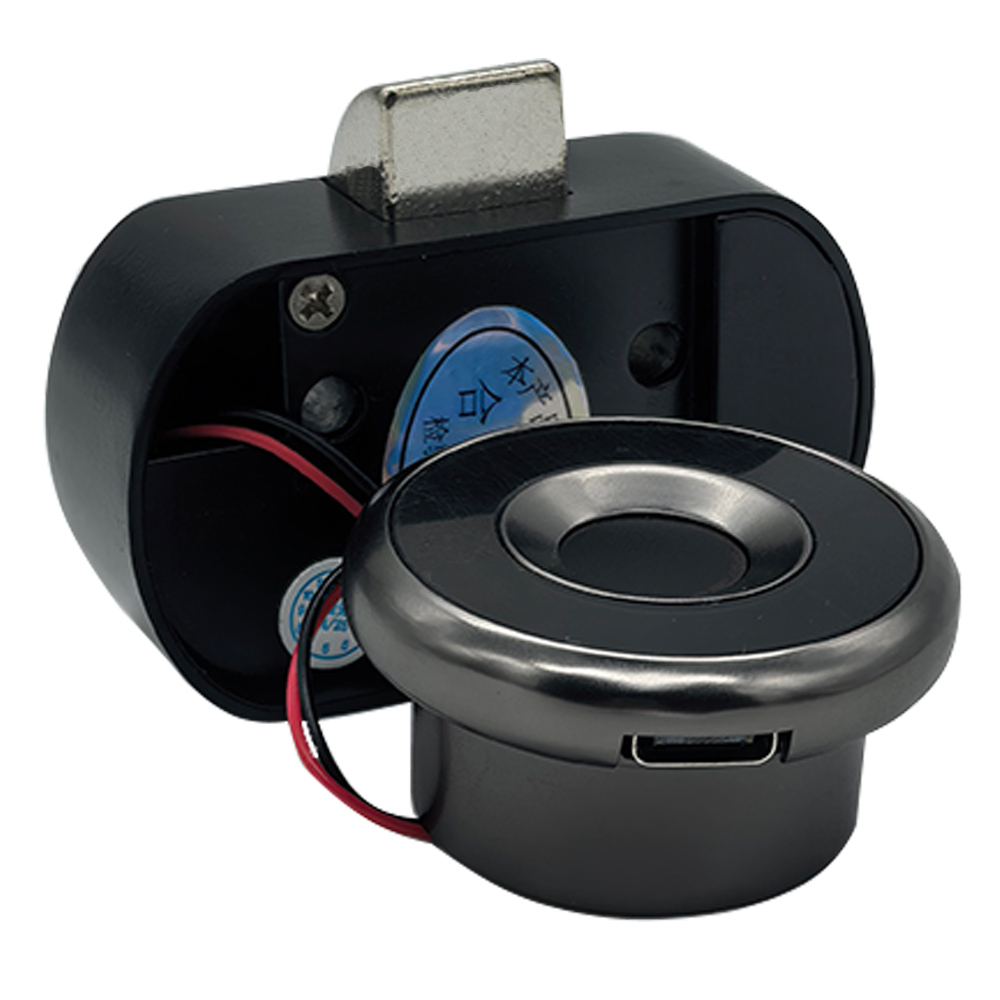

.Fingerprint lock PCBA is mainly used for single fingerprint unlocking products such as cabinet lock, drawer lock, gun box lock, wine cabinet lock, luggage lock, cup lock, etc.

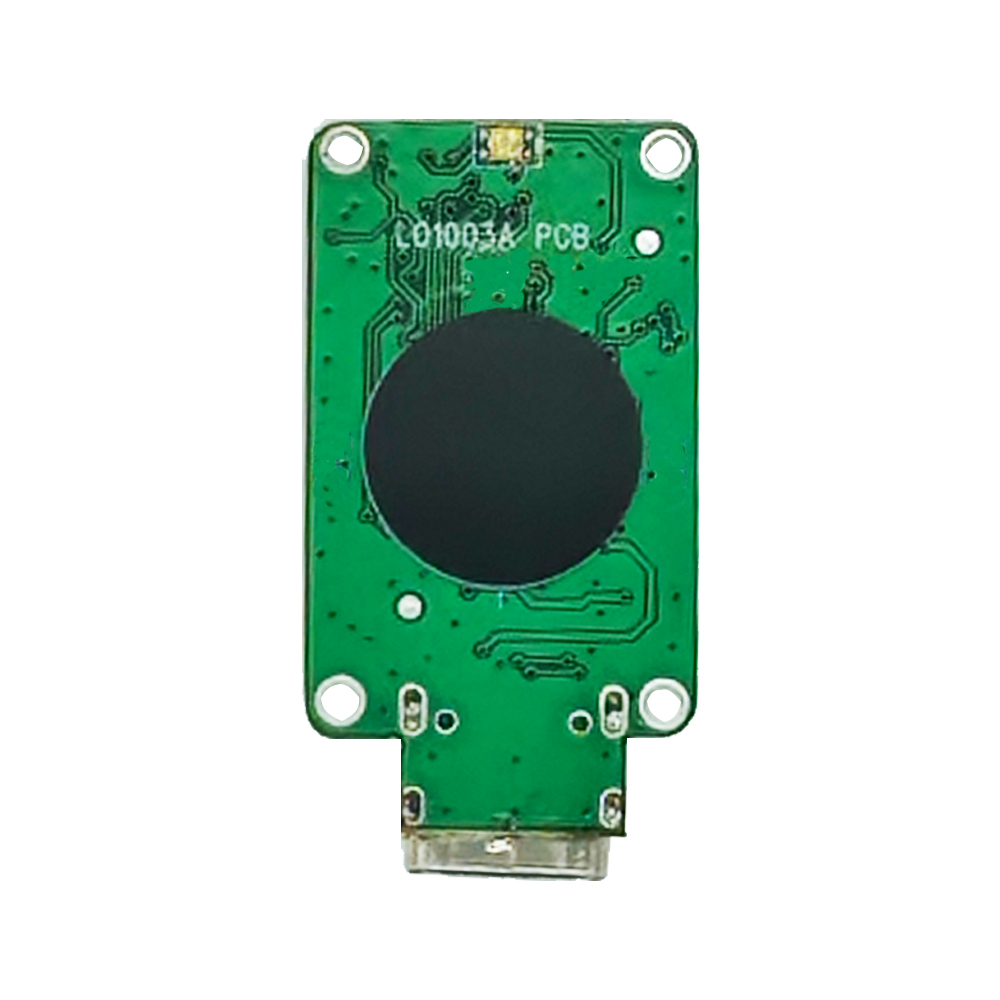

.Fingerprint collector diameter 12 MM, black, thickness 0.7 MM.

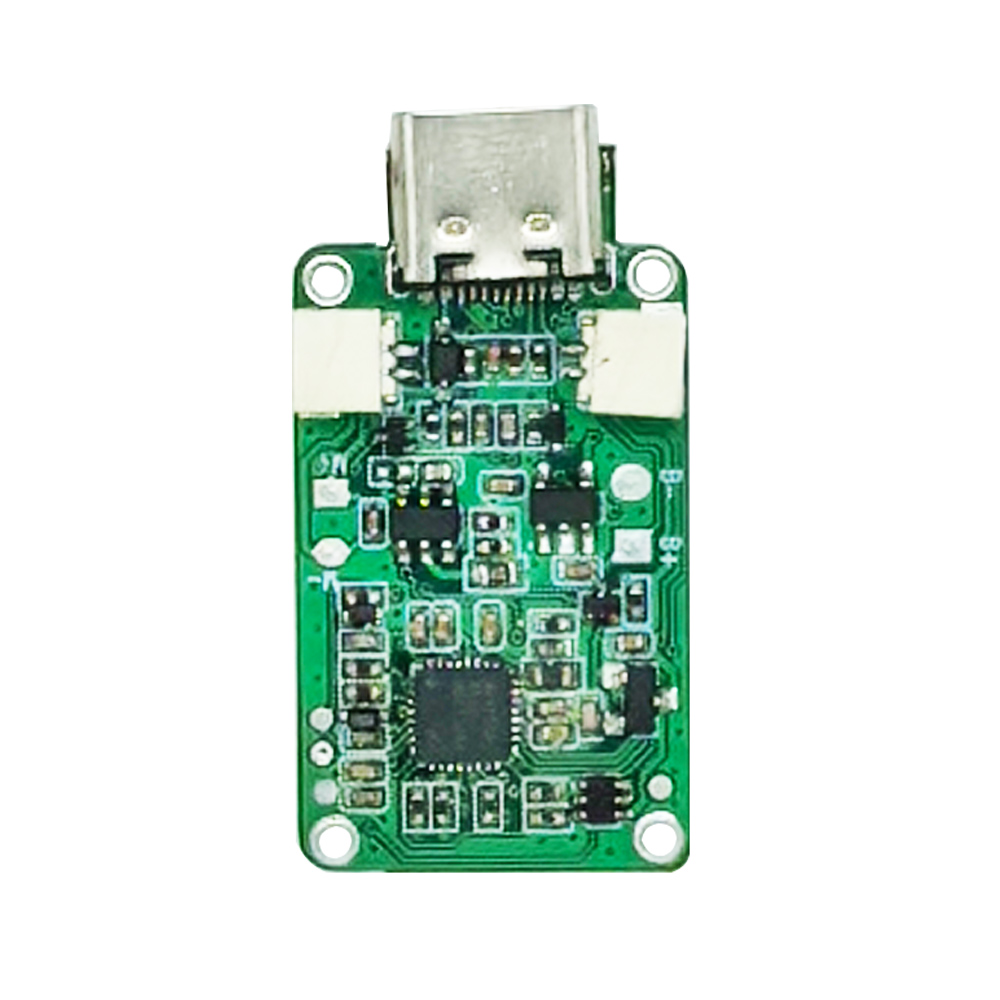

.PCB size can be customized, can do ultra-small size.

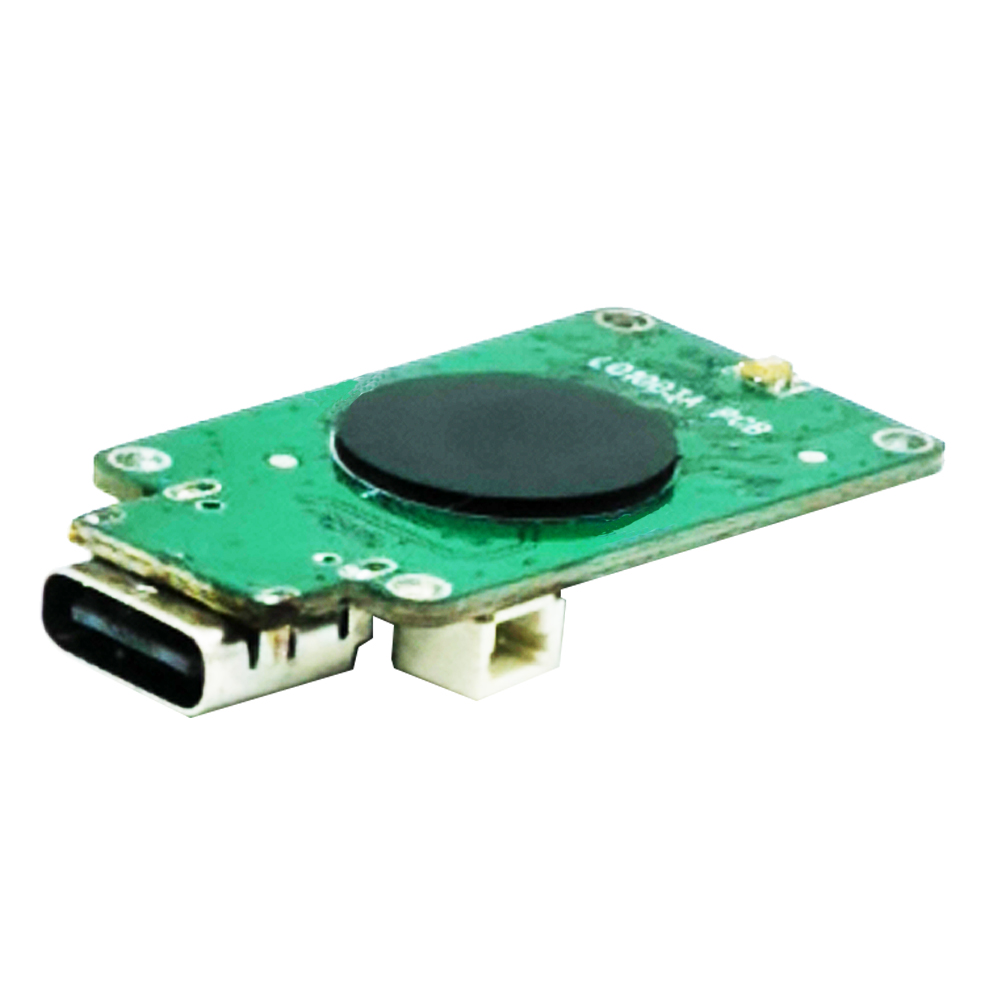

.TYPEC charging jacket.
.Ultra-low power consumption (if the 200 mAH lithium battery is used, it can be used for more than 12 months if it is used 5-10 times a day).
.RGB LED indicator, showing different working status (green for normal working status, blue for setting status, red for warning status)
.TYPEC electronic KEY unlocking function (the second unlocking method of fingerprint lock, to prevent the use of fingerprint when it cannot be unlocked, patented technology).
The battery can be connected with lithium battery (3.7 V) or 3-4 dry batteries (4.5V-6 V).
Lithium batteries can be charged by TYPEC.
Minimum operating voltage 3.-3 V, low voltage alarm voltage 3.5V.
Working current: 1.2MA (when the motor does not rotate).
Sleep Current: 8 uA.

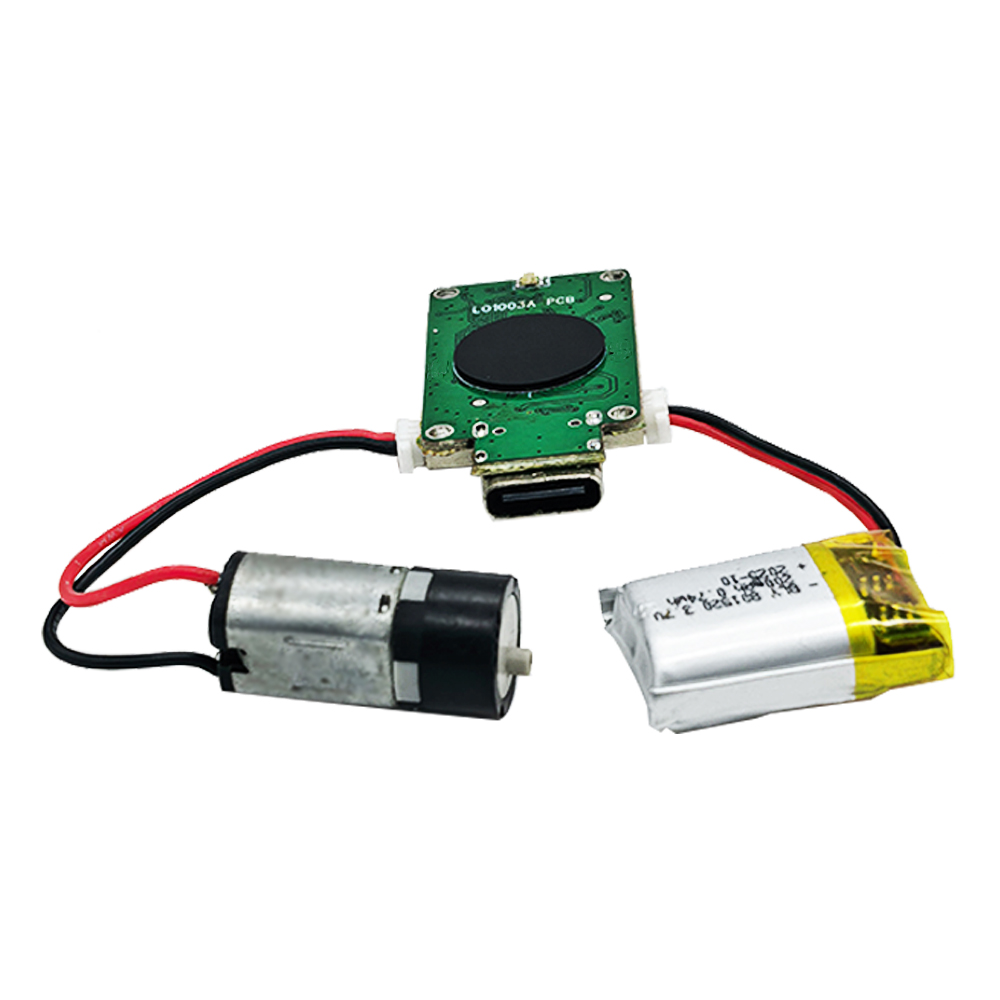

The forward rotation time of the motor is set to 1.5 seconds. If there is a design limit, the motor stops when the locked-rotor current is 3-5 times of the normal current. After an interval of 3-5 seconds, the motor reverses. The forward rotation time is set to 1.5 seconds. If there is a design limit, the motor stops. That is to say, different products only need to be limited by structural design, and there is no need to adjust the motor rotation time.
The actuator may be a motor, a relay, a titanium wire mechanism, etc.
